Surplus Heat Exchangers

Surplus heat exchangers are in stock and fully tested by in-house technicians. All units listed are either new or refurbished by CG Thermal, an industry-leader in process technology for harsh and corrosive process streams.

cg thermal capabilities
cg thermal capabilities
cg thermal capabilities

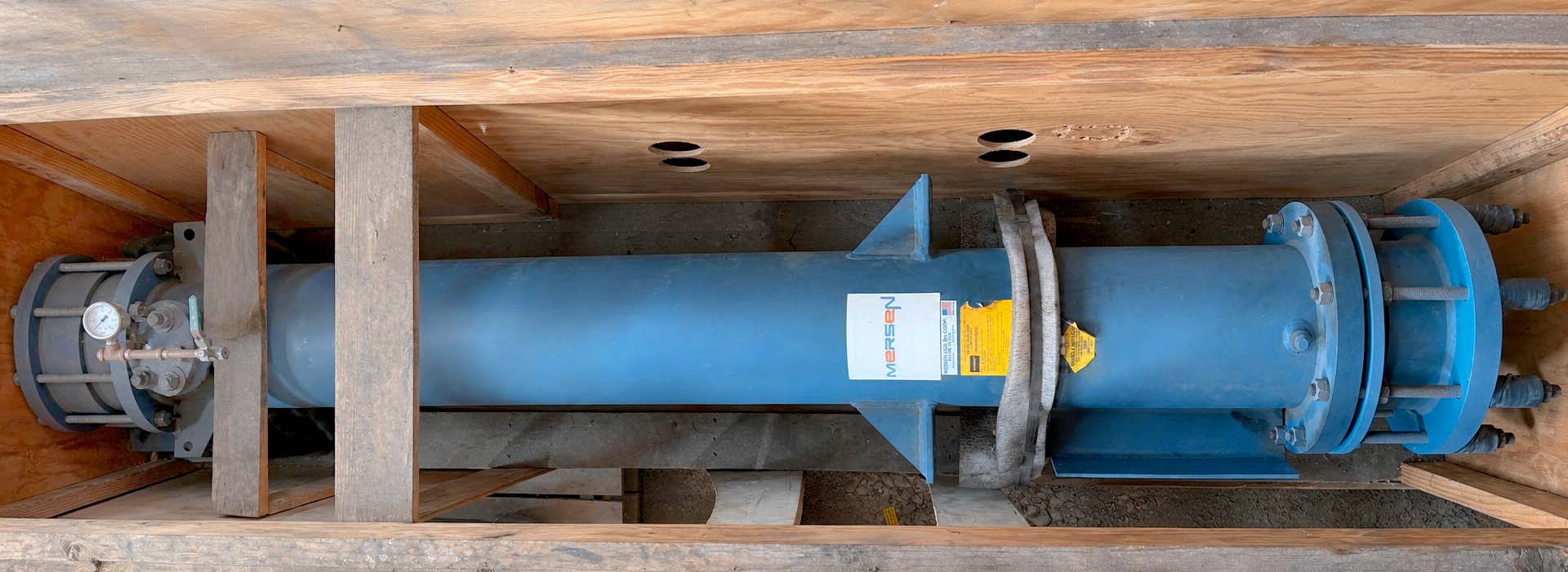

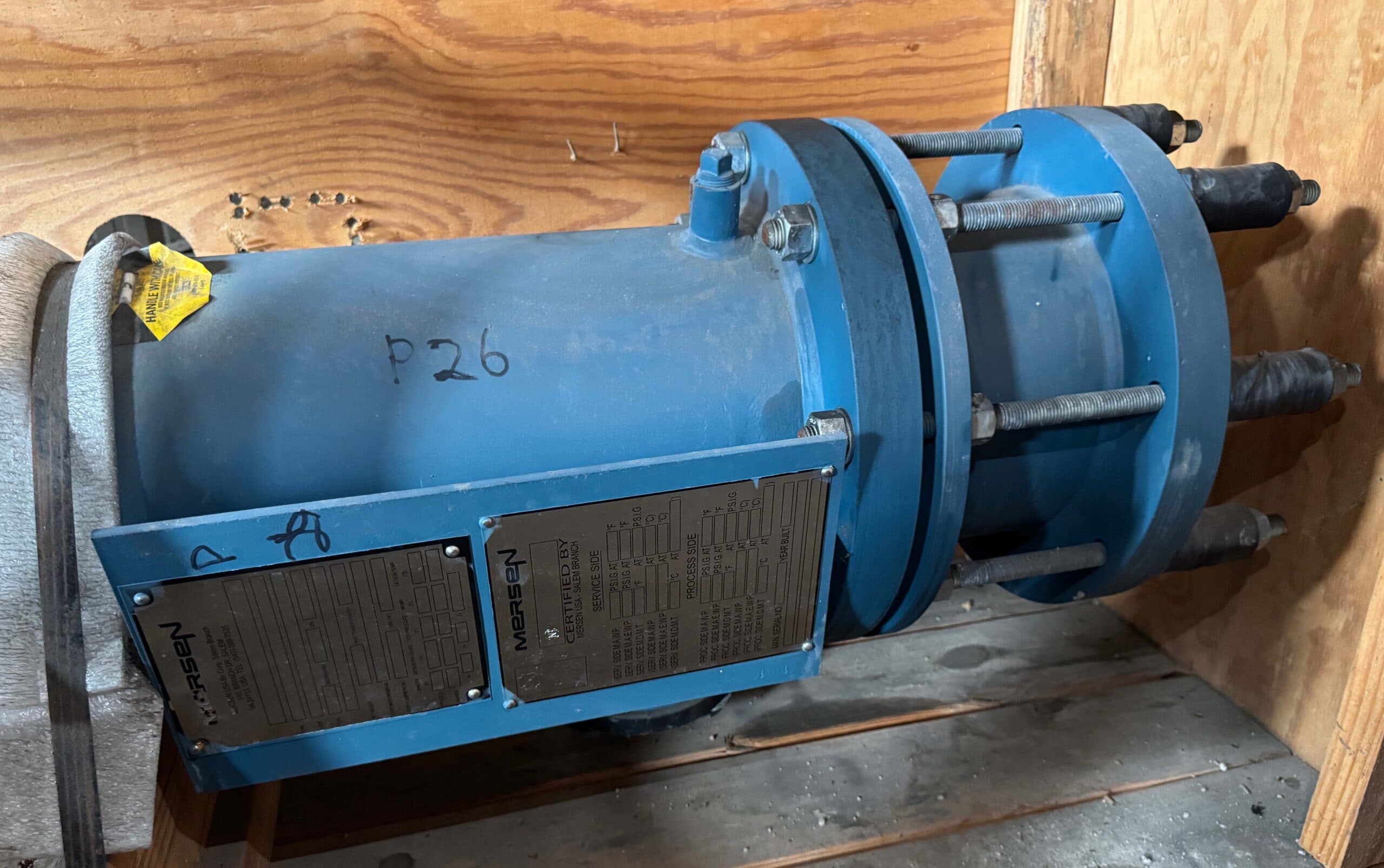

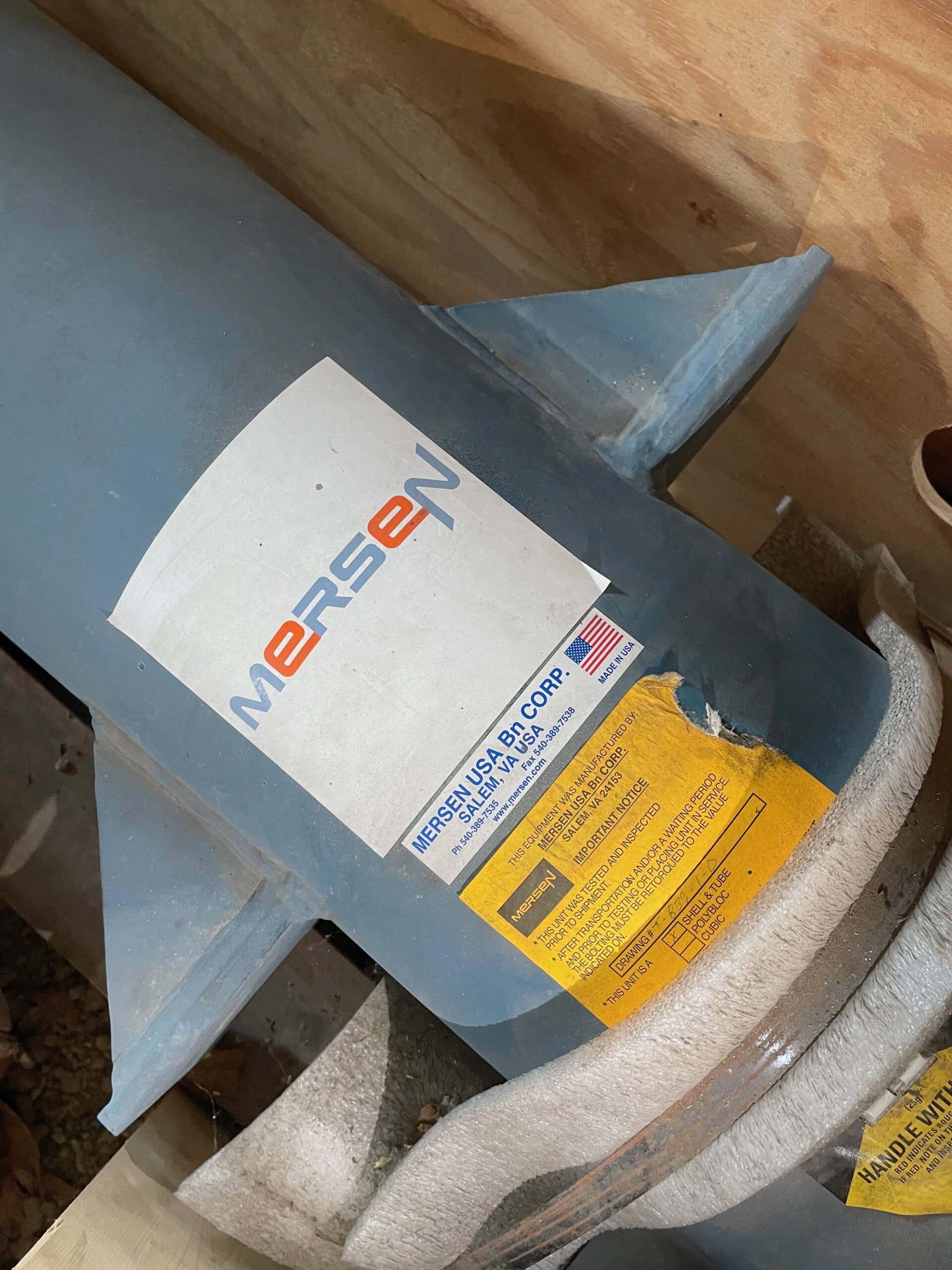

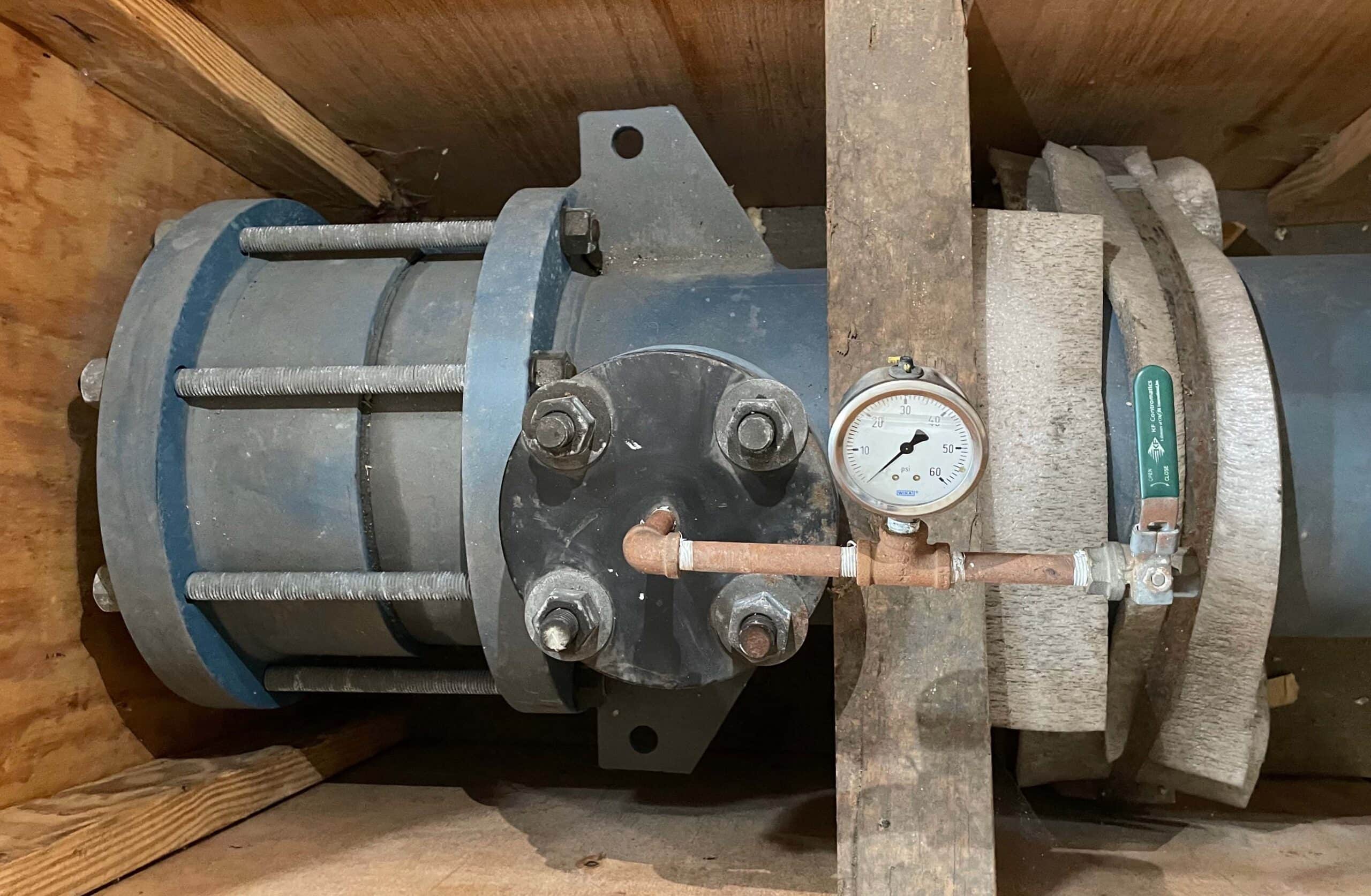

Refurbishment Model PBC18L-4PU-1-1



cylindrical graphite block heat exchanger
with 116 Ft2 of heat transfer area
  • DESIGN: 75 psig at 356 deg. F
  • BLOCKS: original graphite
  • HEADS: original graphite
  • PROCESS NOZZLES: 6”; 150#ANSI
  • SHELL:  20” dia. Carbon Steel
  • BAFFLES: Carbon Steel
  • GASKETS: TEFLON; Gasket-grade, without fillers.
  • SHELL NOZZLES: 4”; 150# ANSI
  • All new hardware, springs, and gaskets
  • HYDROTESTED @ 75 psig
  • OVERALL LENGTH 76.75”

Interested? Contact us.



Impervite graphite shell and tube heat exchanger
Impervite graphite shell and tube heat exchanger
Impervite graphite shell and tube heat exchanger
Impervite graphite shell and tube heat exchanger

New Units (Qty 2) Model 12-108 Type -BEP-, Series S

Impervite® graphite shell and tube exchanger with 109 Ft2 of heat transfer area

TUBESIDE:

  • DESIGN: 75 psig at 340 Deg F.
  • TUBES: Impervite®, fully graphitized. Qty. = (38)
    1.25” nominal outside diameter by 108 inches long.
  • TUBESHEETS: Fixed, Impervite, with carbon steel cover.
    Floating, Impervite, with carbon steel skirt.
  • HEADS: Impervite, carbon steel covers, 5-pass
  • NOZZLES: Per TEMA sheet 21Q-5622-rev1



SHELLSIDE

  • DESIGN: 75 psig at 340 Deg F.
  • MATERIAL: Carbon Steel
  • DIAMETER: 12” nominal
  • BAFFLES: Carbon Steel
  • NOZZLES: Per TEMA sheet 21Q-5622-rev1
  • GASKETS: TEFLON: Gasket-grade, without fillers.
  • CODE: ASME SEC VIII Div 1 U stamp
  • HYDROTESTED

Interested? Contact us today!
